The VMX650FX is engineered using a Traveling Column to provide rigidity, accuracy, power, and durability, in production of 5 axis machined parts. The VMX650FX series also offers the options of adding a “Pallet Pool”, and Pneumatic or Hydraulic programable doors. Also available is “Through table Hydraulic or Pneumatic” clamping. For ease of automation and “Lights Out” operation all features are M-Code programable. The machine is controlled by a FANUC 31i-B5 control. Features include simultaneous X,Y, Z, A, and C motion, to produce the most sophisticated 5 axis parts. High Precision 35/45/45mm roller linear guides are matched with robust Ø45mm pre-tensioned C2 class ball screws delivering reliable accuracy on X/Y/Z Axes. A Heidenhain rotary encoder is included with the A axis tilting rotary for your most demanding applications. The Dual Contact CAT.40 spindle features tool holding with two face clamping enabling rigid machining while reducing tool wear. An optional HSK A63 spindle is also offered.
• Rotary Table Diameter: Ø25.59” x 20.47” (Ø650×520 mm)
• Max Work Envelop Size: 21.17” (Ø650 mm) Height: 18.11″ (460 mm)
• Max Table Load: 661.39 lbs./ 661.39 lbs (300kg/ 300kg)
• X/ Y/ Z Axis Travel: 27.56”/ 22.05”/ 18.70” (700/ 560/ 475mm)
• Tilt Axis (B Axis), Swiveling Range -90~ +120°; with Heidenhain ECN Rotary Encoder
• Rotary Axis (C Axis) 360°; with Heidenhain ECN Rotary Encoder
For over 20 Years, Pegasus Mfg. Inc. has been providing precision machining services & custom tooling solutions from our state-of-the-art facility. Our wide range of machining capabilities and value-added services allow us to deliver various complex custom–machined components and assemblies to various industries worldwide. As part of our capabilities, we offer multi-axis CNC milling services. Our 3-, 4-, and 5-axis milling machines enable us to create ultraprecise and complex machined results to meet the specific needs of our customers.
The Jupiter VMX650FX 5-Axis traveling column machine center features a table size of Ø650 mm, and a work envelope size applicable for complicated simultaneous contouring required for high accuracy machining applications. Superior +/- 3 microns machine accuracy increases profits and reduces scrap. This machine is designed to support the aerospace, medical, molding, automotive and other advanced industries.
• Rotary Table Diameter: Ø25.59” x 20.47” (Ø650×520 mm)
• Max Work Envelop Size: 21.17” (Ø650 mm) Height: 18.11″ (460 mm)
• Max Table Load: 661.39 lbs./ 661.39 lbs (300kg/ 300kg)
• X/ Y/ Z Axis Travel: 27.56”/ 22.05”/ 18.70” (700/ 560/ 475mm)
• Tilt Axis (B Axis), Swiveling Range: -90 ~ +120°; with Heidenhain ECN Rotary Encoder
• Rotary Axis (C Axis): 360°; with Heidenhain ECN Rotary Encoder
The JupiterVMX320 FX Vertical Machining Center is a high performance, premium machine tool, designed to feature maximum capacity and performance. The compact footprint, yet powerful platform satisfy Mold & Die, Medical, Automotive and many other critical applications.
• Rotary Table Diameter: Ø12.6″ x 20.47” (Ø320 mm)
• Max Work Envelop Size: Ø12.6″ (Ø320 mm) Height: 21.2″ (460 mm)
• Max Table Load: 220 lbs. / 220 lbs. (100kg / 300kg)
• X/ Y/ Z Axis Travel: 18.1″ / 24.0″ / 20.0″ / 20.0″ (700/ 560/ 475mm)
• Tilt Axis (B Axis), Swiveling Range: +30 ~ +120°; with Heidenhain ECN Rotary Encoder
• Rotary Axis (C Axis): 360°; with Heidenhain ECN Rotary Encoder
The Jupiter Hurricane 650 5-Axis Gantry machine center features a table size of Ø650 mm, and a work envelope size applicable for complicated simultaneous contouring required for high accuracy machining applications. Superior +/- 3 microns machine accuracy increases profits and reduces scrap. This machine is designed to support the aerospace, medical, molding, automotive and other advanced industries.
• Rotary Table Diameter: Ø25.59” x 20.47” (Ø650 × 520 mm)
• Max Work Envelop Size: 21.17” (Ø650 mm) Height: 18.11″ (460 mm)
• Max Table Load: 1,650 lbs./ 661.39 lbs (750kg / 750kg)
• X/ Y/ Z Axis Travel: 25.59″ / 32.28″ / 21.65″ (650 / 820 / 550 mm)
• Tilt Axis (A Axis), Swiveling Range: +100° ~ -120°; with Heidenhain ECN Rotary Encoder
• Rotary Axis (C Axis): 360°; with Heidenhain ECN Rotary Encoder
• Machine Weight 22,000 lbs. / (9,980 kg.)
The JUPITER VMX650 FX Vertical Machining Center is a high performance, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. The compact footprint, yet powerful platform satisfies Mold & Die, Medical, Automotive and many other critical applications.
• Rotary Table Diameter: Ø25.5″ (Ø650 mm)
• Max Work Envelop Size: Ø12.6″ (Ø320 mm) Height: 21.2″ (460 mm)
• Max Table Load: 220 lbs. / 220 lbs. (100kg / 300kg)
• X/ Y/ Z Axis Travel: 24.4″ / 20.4″ / 18.1″ (620 / 520 / 460 mm)
• Tilt Axis (B Axis), Swiveling Range: +30 ~ +120°; with Heidenhain ECN Rotary Encoder
• Rotary Axis (C Axis): 360°; with Heidenhain ECN Rotary Encoder
• Machine Weight 16,280 lbs. / (7,400 kg.)
The JUPITER VMC-4024 Vertical Machining Center is a high performance, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. The compact footprint, yet powerful platform satisfies Mold & Die, Medical, Automotive and many other critical applications.
This machining center is engineered in a unique wide column design for an excellent foundation. High Precision 35/45/45mm roller linear guides are used with robust Ø45mm pre-tensioned C2 class ball screw for reliable accuracy on X/Y/Z Axes. Standard side mount 30 tool ATC with max tool diameters of 75mm/150mm, with/without adjacent tools. High precision Big Plus #40 with two face clamping for rigid machining and reduced tool wear.
• X / Y / Z Axis Travel: 40.2″ / 24″ / 24″ 1020 / 610 610 mm)
• Max Work Envelop Size: 47.25″ x 23.6″ (1200 mm x 600 mm)
• Max Table Load: 1,980 lbs. / 1,980 lbs. (750 kg / 750 kg.)
• Rotary Axis (C Axis): 360°; with Heidenhain ECN Rotary Encoder
• Spindle Nost to Table: 3.9” – 27.9” in (100 – 710 mm)
• Machine Weight 16,060 lbs. / (7,300 kg.)
• Positioning Accuracy: 0.00019” in ( 0.005 mm )
• Repeatability Accuracy: 0.00015” In ( 0.004 mm)
The Jupiter VMC-3016 Vertical Machining Center is a high performance, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. The compact footprint, yet powerful platform satisfies Mold & Die, Medical, Automotive and many other critical applications.Vertical Machining Center Heavily Ribbed Casting.
The frame is built from high quality, high tensile MEEHANITE FC30 naturally aged cast iron provides outstanding wear resistance and rigidity.
• X / Y / Z Axis Travel: 29.52 / 15.75″ / 17.722″ 750 / 400 / 450 mm)
• Max Work Envelop Size: 47.25″ x 23.6″ (1200 mm x 600 mm)
• Max Table Load: 1,100 lbs. / 1,100 lbs (499 kg / 499 kg)
• Rotary Axis (C Axis): 360°; with Heidenhain ECN Rotary Encoder
• Spindle Nost to Table: 5.91” – 23.62” in (150– 600 mm)
• Machine Weight 14,300 lbs. / ( 6486 kg )
• Positioning Accuracy: 0.000157″ in ( 0.005 mm )
• Repeatability Accuracy: 0.000118” In ( 0.0029 mm)
The JUPITER VMC-6330 Vertical Machining Center is a high performance, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. The compact footprint, yet powerful platform satisfies Mold & Die, Medical, Automotive and many other critical applications.
The VMC series is engineered in a unique wide column design for an excellent foundation. High Precision 45/55/45mm roller linear guides are used with robust Ø50mm pre-tensioned C2 class ball screw for reliable accuracy on X/Y/Z Axes. Standard chain type 48 tool ATC with max tool diameters of 75mm/150mm, with/without adjacent tools. Features a high precision BBT40 spindle with two face clamping for rigid machining and reduced tool wear
• X / Y / Z Axis Travel: 62.3″ / 29.5″ / 29.5″ ( 1600 / 750 / 750 mm )
• Max Work Envelop Size: 68.9” x 27.6″ ( 1750 mm x 700 mm )
• Max Table Load: 3,968 lbs / 13,968 lbs (1,800 kg / 1,800 kg )
• Rotary Axis (C Axis): 360°; with Heidenhain ECN Rotary Encoder
• Spindle Nose to Table: 3.9” – 33.46” in ( 100 – 850 mm )
• Machine Weight 26,000 lbs. / ( 12,000 kg )
• Positioning Accuracy: 0.00019” in ( 0.005 mm )
• Repeatability Accuracy: 0.00015” In ( 0.004 mm)
The JUPITER VMC-8030 Vertical Machining Center is a high performance, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. The compact footprint, yet powerful platform satisfies Mold & Die, Medical, Automotive and many other critical applications.
The VMC series is engineered in a unique wide column design for an excellent foundation. High Precision 45/55/45mm roller linear guides are used with robust Ø50mm pre-tensioned C2 class ball screw for reliable accuracy on X/Y/Z Axes. Standard chain type 48 tool ATC with max tool diameters of 75mm/150mm, with/without adjacent tools. Features a high precision BBT40 spindle with two face clamping for rigid machining and reduced tool wear
• X / Y / Z Axis Travel: 79.9 / 29.75″ / 38.722″ ( 2029 / 755 / 984mm )
• Max Work Envelop Size: 84.25″ x 29.6″ (1200 mm x 600 mm )
• Max Table Load: 1,100 lbs. / 1,100 lbs (499 kg / 499 kg )
• Rotary Axis (C Axis): 360°; with Heidenhain ECN Rotary Encoder
• Spindle Nose to Table: 5.91” – 23.62” in (150– 600 mm )
• Machine Weight 32,000 lbs / ( 14,515 kg )
• Positioning Accuracy: 0.000157″ in ( 0.005 mm )
• Repeatability Accuracy: 0.000118” In ( 0.0029 mm )
The JUPITER VMC-4022 Vertical Machining Center is a high performance, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. The compact footprint, yet powerful platform satisfies Mold & Die, Medical, Automotive and many other critical applications.
The VMC series is engineered in a unique wide column design for an excellent foundation. High Precision 45/55/45mm roller linear guides are used with robust Ø50mm pre-tensioned C2 class ball screw for reliable accuracy on X/Y/Z Axes. Standard chain type 48 tool ATC with max tool diameters of 75mm/150mm, with/without adjacent tools. Features a high precision BBT40 spindle with two face clamping for rigid machining and reduced tool wear
• X / Y / Z Axis Travel: 40.16″ / 21.65″ / 20.08″ In ( 1020 / 550/ 510 mm )
• Max Work Envelop Size: 47.27” x 20.87″ In ( 1200 mm x 530 mm )
• Max Table Load: 1,320 lbs / 1,320 lbs (599 kg / 599 kg )
• Rotary Axis (C Axis): 360°; with Heidenhain ECN Rotary Encoder
• Spindle Nose to Table: 5.91” – 26.00” in ( 150 – 660 mm )
• Machine Weight 14,300 lbs. / ( 6486kg )
• Positioning Accuracy: 0.000157” in ( 0.003978 mm )
• Repeatability Accuracy: 0.000118” In ( 0.0029972 mm)
The JUPITER VMC-8030 Vertical Machining Center is a high performance, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. The compact footprint, yet powerful platform satisfies Mold & Die, Medical, Automotive and many other critical applications.
The VMC series is engineered in a unique wide column design for an excellent foundation. High Precision 45/55/45mm roller linear guides are used with robust Ø50mm pre-tensioned C2 class ball screw for reliable accuracy on X/Y/Z Axes. Standard chain type 48 tool ATC with max tool diameters of 75mm/150mm, with/without adjacent tools. Features a high precision BBT40 spindle with two face clamping for rigid machining and reduced tool wear
• X / Y / Z Axis Travel: 79.9 / 29.75″ / 38.722″ ( 2029 / 755 / 984mm )
• Max Work Envelop Size: 84.25″ x 29.6″ (1200 mm x 600 mm )
• Max Table Load: 1,100 lbs. / 1,100 lbs (499 kg / 499 kg )
• Rotary Axis (C Axis): 360°; with Heidenhain ECN Rotary Encoder
• Spindle Nose to Table: 5.91” – 23.62” in (150– 600 mm )
• Machine Weight 32,000 lbs / ( 14,515 kg )
• Positioning Accuracy: 0.000157″ in ( 0.005 mm )
• Repeatability Accuracy: 0.000118” In ( 0.0029 mm )
The JUPITER CM-2016 Compact High Speed Machining Center is a high performance, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. The compact footprint, yet powerful platform satisfies Mold & Die, Medical, Automotive and many other critical applications.
The CM series is engineered in a unique “C” frame design for an excellent foundation. High Precision 30mm roller linear guides are used with robust Ø32mm pre-tensioned C1 class ball screw for reliable accuracy on X/Y/Z Axes.
High precision Big Plus #40 or BBT30 with two face clamping for rigid machining and reduced tool wear.
• Max Work Envelop Size: 25.6” x 16.14″ in (650 x 410 mm)
• Max Table Load: 300 lbs. / 300 lbs ( 136 kg / 136 kg)
• X/ Y/ Z Axis Travel: 19.7” / 15.75” / 17.7” (500 / 400 / 450 mm)
• Spindle Nose to Table: 5.12″ – 22.83″ in ( 130 – 580 mm)
The JUPITER CM-2016 Compact High Speed Machining Center is a high performance, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. The compact footprint, yet powerful platform satisfies Mold & Die, Medical, Automotive and many other critical applications.
The CM series is engineered in a unique “C” frame design for an excellent foundation. High Precision 30mm roller linear guides are used with robust Ø32mm pre-tensioned C1 class ball screw for reliable accuracy on X/Y/Z Axes.
High precision Big Plus #40 or BBT30 with two face clamping for rigid machining and reduced tool wear.
• Max Work Envelop Size: 33.46” x 16.14″ in (850 x 410 mm)
• Max Table Load: 300 lbs. / 300 lbs ( 136 kg / 136 kg)
• X/ Y/ Z Axis Travel: 27.5” / 15.75” / 17.7” (700 / 400 / 450 mm)
• Spindle Nose to Table: 5.12″ – 22.83″ in ( 130 – 580 mm)

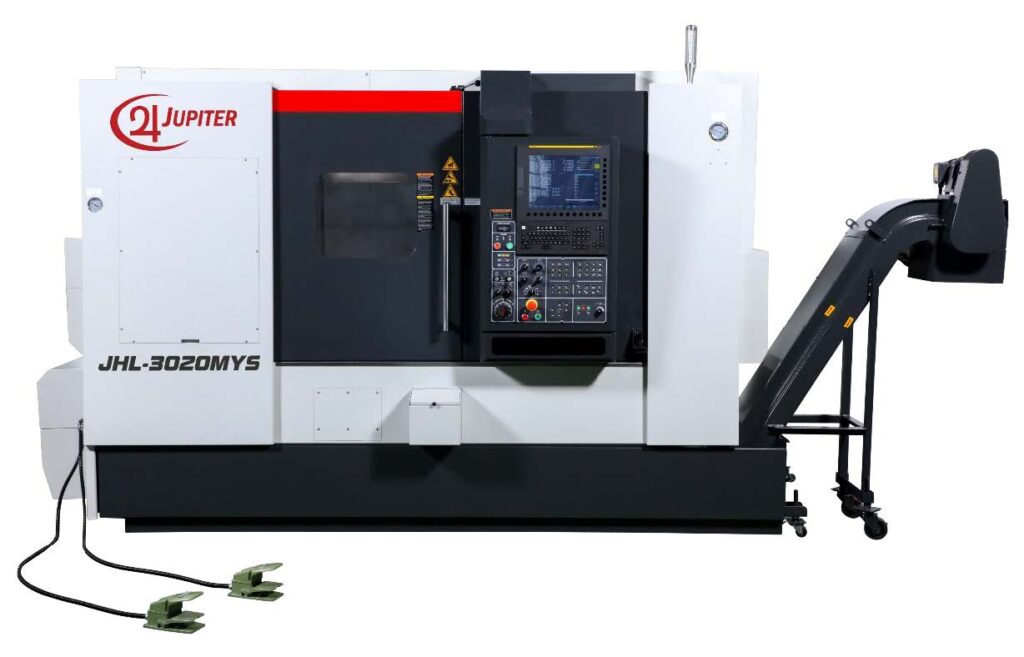

The JUPITER JHL-MY series of turning centers is a heavy duty, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. With bar capacity up to Ø 3.0”, subspindle or tailstock options this series offers great flexibility. The high performance, no-compromise platform satisfies Medical, Aerospace, Energy, and job shops requiring high productivity and robust applications.
The JHL-MY series is engineered in a 30 Degree Slant Bed for an excellent foundation. The Y axis rides on a 15-degree slant for maximum power and space savings. FEA designed Meehanite casting structure can withstand greater stress without deforming and provides ultimate vibration damping. High Precision integral box ways for maximum rigidity and accuracy.
Ground pre-tensioned ball screws for reliable precision on all linear axes. The available subspindle and parts catcher bring quick automation to your next job. All MY series machines include a BMT60 live tool servo turret to increase your production flexibility with 6hp and 6,000 rpm.
• Travel of X / Y / Z / ZB / C1 / C2: (310 / 110 / 620 / 650mm / 360° / 360°)
• Rapid Rate X / Y / Z / ZB: 787ipm (20m/min)
• Max Turning Diameter: Ø18.11” (460mm)
• Max Turning Length: 21.6” (548mm)
• Turning Spindle Bar Capacity (Main): Ø3.0” (77mm)
• Turning Spindle Nose (Main): A2-8, 3,500rpm max
• Turning Spindle Bar Capacity (Sub): Ø2.0” (52mm)
• Turning Spindle Nose (Sub): A2-5, 6,000rpm max
The JUPITER JHL-MY series of turning centers is a heavy duty, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. With bar capacity up to Ø 3.0”, subspindle or tailstock options this series offers great flexibility. The high performance, no-compromise platform satisfies Medical, Aerospace, Energy, and job shops requiring high productivity and robust applications.
The JHL-MY series is engineered in a 30 Degree Slant Bed for an excellent foundation. The Y axis rides on a 15-degree slant for maximum power and space savings. FEA designed Meehanite casting structure can withstand greater stress without deforming and provides ultimate vibration damping. High Precision integral box ways for maximum rigidity and accuracy.
Ground pre-tensioned ball screws for reliable precision on all linear axes. The available subspindle and parts catcher bring quick automation to your next job. All MY series machines include a BMT60 live tool servo turret to increase your production flexibility with 6hp and 6,000 rpm.
• Travel of X / Y / Z / ZB / C1 / C2: (310 / 110 / 620 / 650mm / 360° / 360°)
• Rapid Rate X / Y / Z / ZB: 787ipm (20m/min)
• Max Turning Diameter: Ø18.11” (460mm)
• Max Turning Length: 21.6” (548mm)
• Turning Spindle Bar Capacity (Main): Ø3.0” (77mm)
• Turning Spindle Nose (Main): A2-8, 3,500rpm max
• Turning Spindle Bar Capacity (Sub): Ø2.0” (52mm)
• Turning Spindle Nose (Sub): A2-5, 6,000rpm max
The JUPITER HMC-800P Vertical Machining Center is a high performance, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. The compact footprint, yet powerful platform satisfies Automotive, Mold & Die, Heavy Equipment, and many other critical applications.
The HMC series is engineered in a symmetrical T-base design for improved stiffness thermal control. High Precision 45/45/45mm roller linear guides are used with robust Ø50mm pre-tensioned C2 class ball screw for reliable accuracy on X/Y/Z Axes. Standard chain type 60 tool ATC with 120 tools available. High precision Big Plus #50 with two face clamping for rigid machining and reduced tool wear.
• X / Y / Z Axis Travel: 50.0″ / 41.3” / 41.35” (1270 / 1050 / 1050mm)
• Full Contouring B axis: +/- 360° (0.001°)
• Work Table Size: 31.5” x 31.5” (800mm x 800mm)
• Max Table Load: 5,500 lbs ( 2,500 kg )
• Machine Weight: 72,600 lbs / ( 33,000 kg )
• Spindle Nost to Table: 1.97” – 43.3” in (50 – 1100 mm )
• Positioning Accuracy: 0.00019” in ( 0.005 mm )
• Repeatability Accuracy: 0.00015” In ( 0.004 mm)
The JUPITER HMC-500 Horizontal Machining Center is a high performance, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. The compact footprint, yet powerful platform satisfies Automotive, Mold & Die, Heavy Equipment, and many other critical applications.
The HMC series is engineered in a symmetrical T-base design for improved stiffness thermal control. High Precision 45/45/45mm roller linear guides are used with robust Ø45mm pre-tensioned C2 class ball screw for reliable accuracy on X/Y/Z Axes. Standard chain type 40 tool ATC, optional 60 Tool ATC available. High precision dual contact CAT 40 spindle with two face clamping for rigid machining and reduced tool wear.
• X / Y / Z Axis Travel: 31.5″ / 31.5” / 31.5” (800 / 800 / 800mm)
• Full Contouring B axis: +/- 360° (0.001°)
• Work Table Size: 19.69” x 19.69” (500mm x 500mm)
• Max Table Load: 1,323 lbs ( 600 kg )
• Machine Weight: 29,760 lbs / ( 13,500 kg )
• Spindle Nost to Table: 5.91″ 37.4″ ( 150 – 950 mm )
• Positioning Accuracy: 0.00019” in ( 0.005 mm )
• Repeatability Accuracy: 0.00015” In ( 0.004 mm)
The JUPITER HMC-400 Vertical Machining Center is a high performance, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. The compact footprint, yet powerful platform satisfies Automotive, Mold & Die, Heavy Equipment, and many other critical applications.
The HMC series is engineered in a symmetrical T-base design for improved stiffness thermal control. High Precision 45/45/45mm roller linear guides are used with robust Ø50mm pre-tensioned C2 class ball screw for reliable accuracy on X/Y/Z Axes. Standard chain type 60 tool ATC with 120 tools available. High precision Big Plus #50 with two face clamping for rigid machining and reduced tool wear.
• X / Y / Z Axis Travel: 23.62″ / 19.69 ” / 19.69″ (600 / 500 / 500 mm)
• Full Contouring B axis: +/- 360° (0.001°)
• Work Table Size: 31.5” x 31.5” (800mm x 800mm)
• Pallet Max Load: 880 lbs ( 400 kg )
• Machine Weight: 12,100 lbs / ( 5,489 kg )
• Spindle Nost to Table: 3.94″ in (100 mm)
• Positioning Accuracy: 0.000157” in ( ±0.0039878 mm )
• Repeatability Accuracy: 0.000118” In ( 0.000118 mm)
The JUPITER HMC-380 Horizontal Machining Center is a high performance, premium machine tool, designed to feature maximum capacity and performance in many demanding industries. The compact footprint, yet powerful platform satisfies Automotive, Mold & Die, Heavy Equipment, and many other critical applications.
The HMC series is engineered in a symmetrical T-base design for improved stiffness thermal control. High Precision 45/45/45mm roller linear guides are used with robust Ø45mm pre-tensioned C2 class ball screw for reliable accuracy on X/Y/Z Axes. Standard chain type 40 tool ATC, optional 60 Tool ATC available. High precision dual contact CAT 40 spindle with two face clamping for rigid machining and reduced tool wear.
• X / Y / Z Axis Travel: 31.5″ / 31.5” / 31.5” (800 / 800 / 800mm)
• Full Contouring B axis: +/- 360° (0.001°)
• Work Table Size: 19.69” x 19.69” (500mm x 500mm)
• Max Table Load: 1,323 lbs ( 600 kg )
• Machine Weight: 29,760 lbs / ( 13,500 kg )
• Spindle Nost to Table: 5.91″ 37.4″ ( 150 – 950 mm )
• Positioning Accuracy: 0.00019” in ( 0.005 mm )
• Repeatability Accuracy: 0.00015” In ( 0.004 mm)
